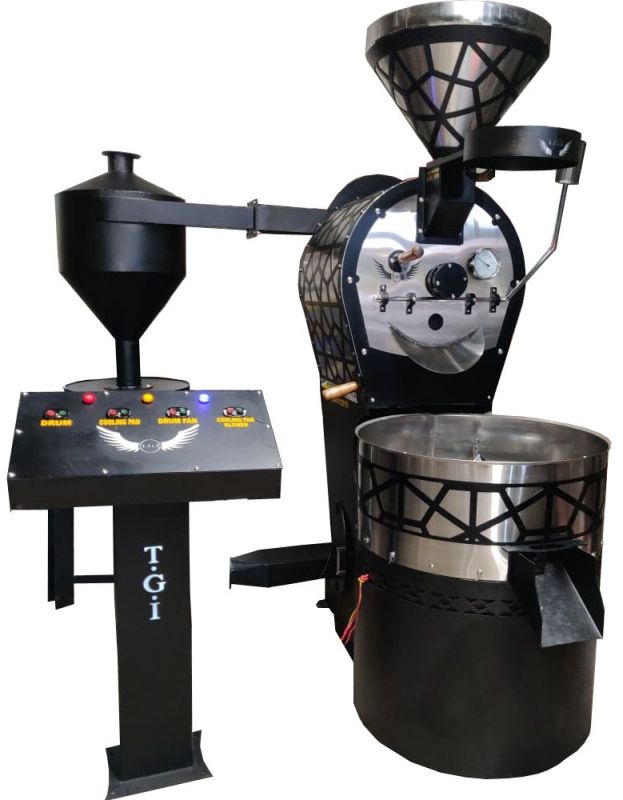

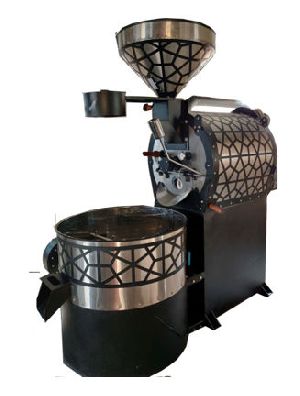

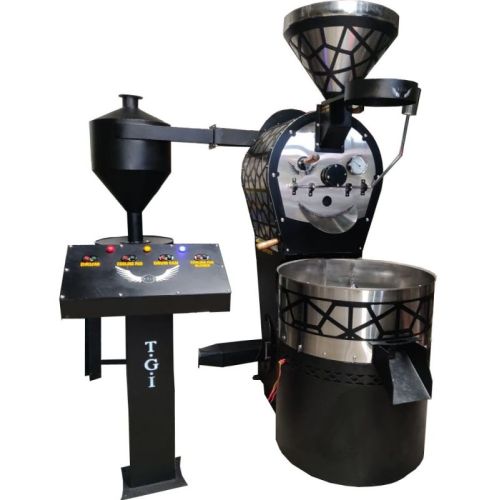

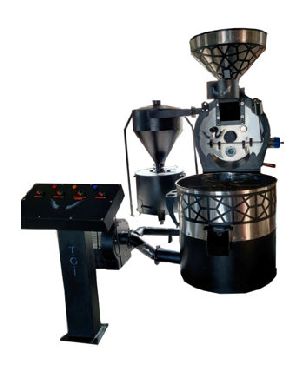

20 Kg Batch Roaster

20 Kg Batch Roaster

Business Type : Manufacturer, Exporter, Supplier, Retailer

Product Details

Batch Capacity 20KG 44.09 LB Green Beans
Roasting Time 14 Minutes for Light Roasting, 18 Minutes for Deep Roasting
Capacity 60KG/H for light roasting, 40KG/H for deep Roasting
Roasting Type Fully Hot Blast and Semi Half Direct Fire & Fully Hot Blast Hot Air Roaster
Heating Type GAS, LPG, LNG
N/w 800KG
Electric Consumption 3KW
Assembly Type Nut, weld Rivet and Bolt
Colors Black and Red
Body Type Mild Steel, stainless Steel

Additional Information

Product Code TGI – 20

Preferred Buyer From

Location Anywhere in India

Features :

  • Solid construction low maintenance
  • Non perforated roasting drum with special agitator ensures
  • Optimal intermixture and excellent roasting results.
  • A sampler and glass window enables continuous
  • monitoring of roasting process monitoring.
  • A powerful suction fan and agitator quickly cool the roasted
  •  coffee beans to the required temperature in a large, open cooling sieve.
  • Modern burners with good insulation ensure low gas consumption
  • Cyclone effectively separates the chaff produced in the roasting process.
  • Recirculation of roasting air for energy-efficient operation
  • Various safety installations for emergencies, e.g. manual emergency
  • operation of roasting drum and cooling stirrer
  • Drum is designed by double layer insulation
  • Temperature control panel is available
  • Volt: 415+- 10% volts, 50-60 HZ 3 Phase are available according to the    Customers Preference. 4 motors (1 Hp + 1Hp +1HP+0.5 HP)


Ordering and Warranty

  • We accept 50%advance rest at the time of delivery
  • Wooden packing available at extra cost
  • One year warranty
